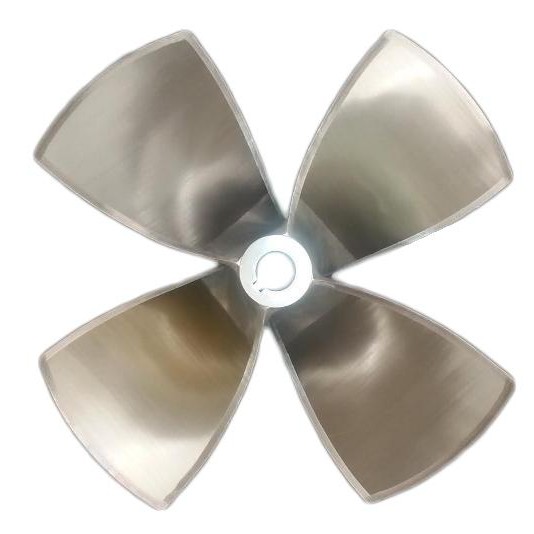

Hung Shen KP Series Propellers
The Kaplan propeller is specifically designed for ducted applications. Its large tip chord length allows it to develop substantially higher thrust than a conventional open propeller of the same diameter. This design makes the Kaplan particularly effective for vessels operating at lower speeds where maximum thrust is the primary requirement. Kaplan propellers are well suited for demanding working vessels such as shrimp boats, tugs, and supply vessels, where consistent bollard pull, efficiency, and reliability are essential. Operators in these applications benefit from the enhanced thrust and performance delivered by the Kaplan design.
KP Propeller Specifications
- Available in 3B & 4B
- Diameter Range: 10" - 120"
- E.A.R. 0.55 - 0.70
- Available in Bronze, NiBral & Stainless Steel (CF3)
- Tolerance: Handcrafted ISO Class-2
- Optional: Custom CNC Machined
- Designed for speeds up to 17 knots
More DetailsPre Order Propeller Terms
Standard orders are shipped Ocean Freight and require 10-12 week delivery. All Propeller orders are for FOB Anacortes WA. A 50% deposit is required at time of purchase, and the remaining balance upon shipment.
Please Contact Us for more information and competitive pricing about this product.
